118/120 US WALL SOCKET USB 5V 4.2A TYPE-C USB 4.8A CANADA MEXICO PLUG Dual Outlet Type A/C Smart Fast Charging Ports Home Office
Specifications
Amperage
|
15 Amp
|
Voltage
|
90-250V
|
Pole
|
2
|
Wire
|
3
|
Grounding
|
General Grounded
|
Dielectric Voltage
|
Withstands 2000V per UL498
|
USB A+ USB C
|
4.2A
|
Current Interrupting
|
2KA
|
Flammability
|
Rated V-2 per UL498
|
Operating Temperature
|
-35°C to +66°C
|
Face Material
|
100% pure PC
|
Terminal Screws
|
Plated Steel
|
Terminal Clamp
|
Brass
|
Line Contacts
|
Brass
|
Grounding Screws
|
Plated steel
|
Mounting Strap Material
|
Galvanized Steel
|
NEMA
|
WD-1 & WD-6
|
Applicable Standards
|
UL 498,PSE
|
Amp
|
15A
|
Voltage
|
90-250V
|
USB Output
|
5V 4.8A
|
Operating temperature
|
-10- 40C
|
Grounding
|
Standard grounding
|
Face Material
|
100% Virgin PC+ABS
|
Color options
|
White, Black, Ivory, Almond
or customize according to required pantone No.
|
||
OEM Service
|
Logo printing
|
MOQ500pcs, 1 color logo available for laser engraving or silk screen
|
|
Color box
|
MOQ1000pcs, need to design the artwork according to our die cutter
|

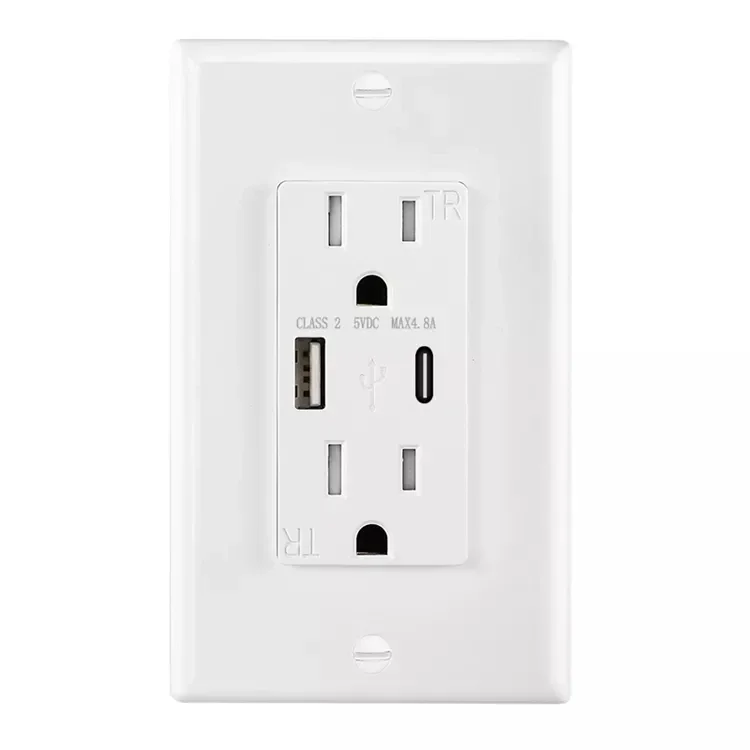

ETL Listed American Standard 90-250V 15A Type C USB Outlet
WIDE VOLTAGE
we can design to support 110V to 240V which can be used widely all South America and North America as well as other American standard areas.
INNER COPPER SHEET
0.8mm phosphor copper to keep the terminal low temperature and good conductivity. Real materials ensure your safety.
TAMPER RESISTANT
Complies with NEC ® requirement, all 15A and 20A receptacles installed in dwelling units should be with tamper-resistant. Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted.
FAST CHARGING

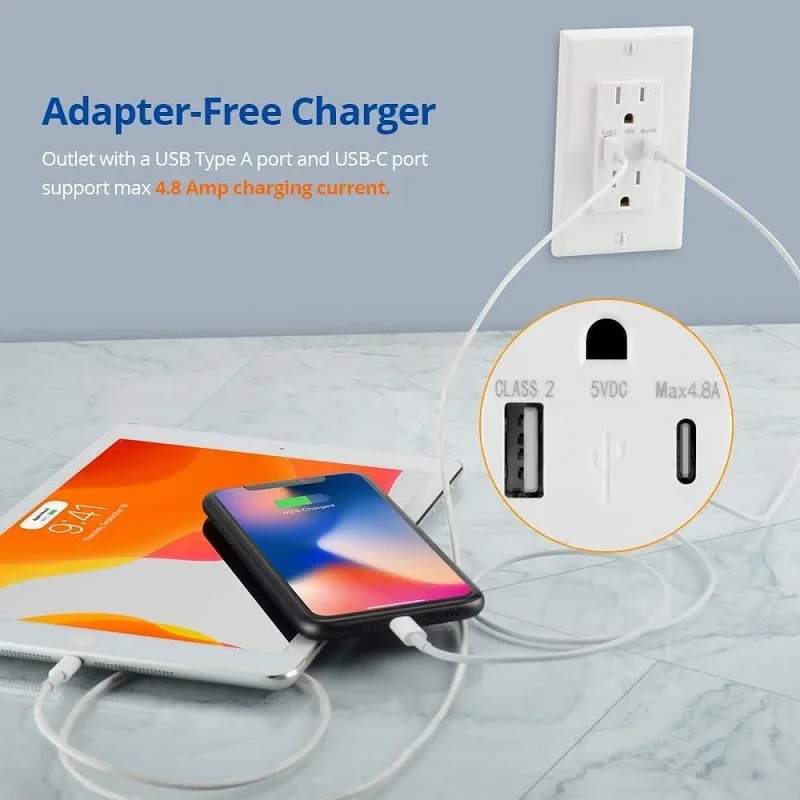

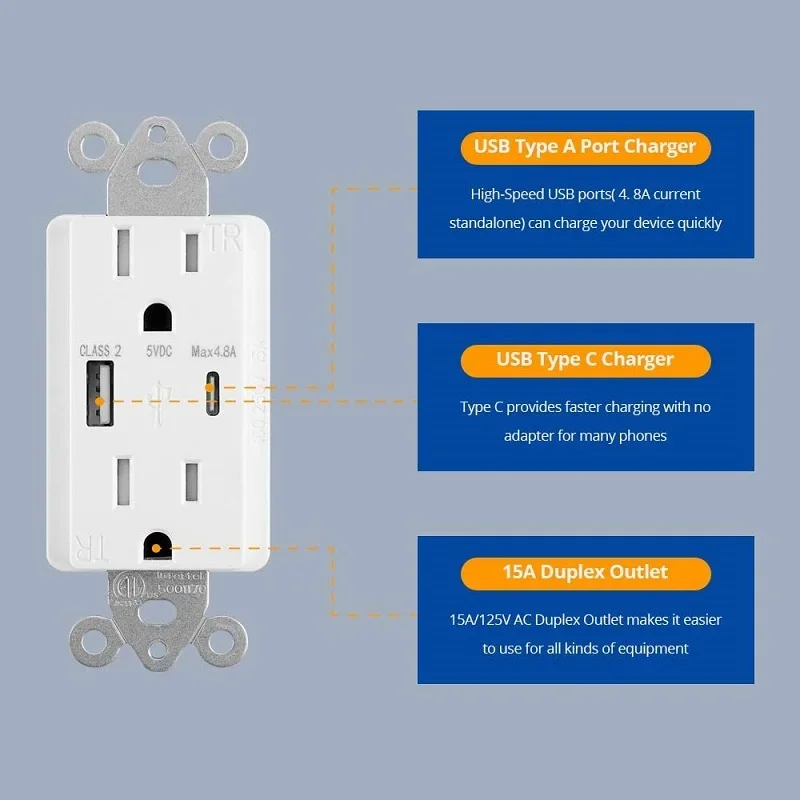

One USB A port and one USB C port Max support 5V 4.2A or 4.8A.
we can design to support 110V to 240V which can be used widely all South America and North America as well as other American standard areas.
INNER COPPER SHEET
0.8mm phosphor copper to keep the terminal low temperature and good conductivity. Real materials ensure your safety.
TAMPER RESISTANT
Complies with NEC ® requirement, all 15A and 20A receptacles installed in dwelling units should be with tamper-resistant. Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted.
FAST CHARGING
One USB A port and one USB C port Max support 5V 4.2A or 4.8A.
Built-in Protect Circuit System Protects Your Devices from Various Hazrds.
The USB Type C/A wall outlet with smart chip designed for recognizing and optimizing the charging requirement of individual electronic devices. The USB ports can precisely "READ" the power needs of the connected device to deliver optimal power. The smart chip charges at the optimal power allowed by the device, so your devices are protected from overcharging, overheating and short circuit.
If single USB port used (Type-C or Type-A port), could be up to 4.2Amps; If both USB ports are used, each USB charging port can be with 2.1Amps, total 5V 4.2A Max. (Not support Qualcomm quick charge technology)
This 4.2A Type C USB wall outlet is mainly for home and commercial use. It is widely used in Kitchens, Hotels, Meeting Rooms, Bedrooms, Office Cubicles, Home Offices, College Dormitories, Airport Lounges, Cafes, Coffee Houses, Salons and Spas Restaurants, etc.\
